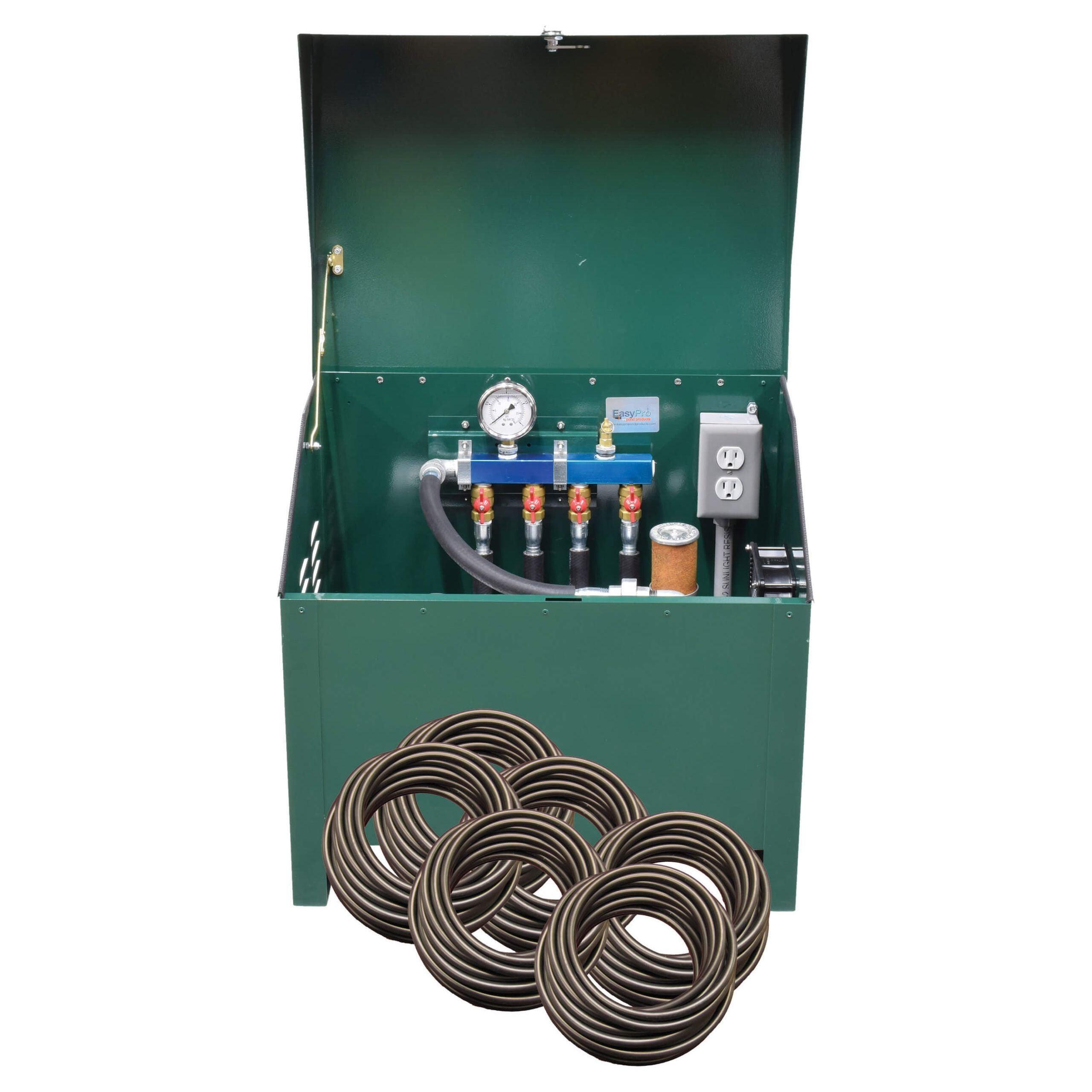

A high-volume, cabinet-housed rotary vane aeration system for large ponds up to 4 acres — 600 ft of weighted tubing included, choose your own diffusers.
This kit doesn't include diffusers, so you can select the exact style and count that fits your pond.
Moves up to 10 CFM of air, reaching depths of up to 18 feet.
600 ft of weighted 1/2" Quick Sink tubing ships in the box.
Compressor, outlet assembly, pressure gauge, cooling fan, and electrical box all pre-installed.
Corrosion-resistant construction runs quietly and stands up to the elements.
1-year warranty on the compressor, 5-year warranty on tubing and cabinet.
| Spec | PA75DLD | PA75D |
|---|---|---|
| Diffusers | Not Included — choose your own | 4 QS2 Dual-Head Included |
| Weight | 402 lbs | 441 lbs |
| Warranty | 1-Yr Compressor, 5-Yr Tubing/Cabinet | 1-Yr Compressor, 5-Yr Tubing/Diffusers/Cabinet |
| Best For | Custom diffuser setups, deep or irregular ponds | Turnkey setup, straight out of the box |
Want diffusers included so you're ready to install right away? See the PA75D Sentinel Deluxe Aeration System.
| Spec | Value |
|---|---|
| Horsepower | 3/4 HP |
| Compressor | Stratus™ RV75 (Rotary Vane) |
| Voltage | 115V or 230V |
| Amperage | 12A (115V) / 6A (230V) |
| Maximum Airflow | 10 CFM |
| Maximum Depth | 18 ft |
| Diffusers | Not Included — Select Separately |
| Tubing Included | 600 ft of 1/2" Weighted Quick Sink |
| Weight | 402 lbs |
| Suggested Pond Size | Up To 4 Acres |
| Warranty | 1-Year Compressor, 5-Year Tubing/Cabinet |
| Shipping | Ships by Motor Freight |
This kit doesn't include diffusers — choose the style and quantity that fits your pond's shape and depth.
Shop Diffusers →Improve the appearance of your pond and help block sunlight that fuels algae growth with concentrated lake dye packets.
Shop Pond Dye →Pair aeration with beneficial bacteria pellets to break down organic sludge on the pond bottom.
Shop Sludge Remover →Why doesn't this come with diffusers?
Large ponds vary widely in depth and shape, so this kit lets you choose the diffuser style and count that best fits your specific setup rather than a one-size-fits-all option.
How big of a pond can this system handle?
The PA75DLD is rated for large ponds up to about 4 acres, depending on depth, shape, and diffuser configuration, and can aerate down to 18 feet.
Does this come with tubing?
Yes — 600 feet of weighted 1/2" Quick Sink tubing is included.
How does this ship? It's heavy.
Due to its size and weight (402 lbs), this system ships by motor freight rather than standard parcel delivery.
What's the warranty?
1 year on the compressor, and 5 years on the tubing and cabinet.
