What is a bottom diffuser aerator and how does it work?

A bottom diffuser aerator sits on the floor of your pond and is connected by weighted tubing to an onshore air compressor. The compressor pumps air through the tubing to the diffuser, which releases thousands of tiny bubbles. Those bubbles rise to the surface, creating an upward current that lifts oxygen-depleted water from the bottom, mixes the entire water column, and replenishes oxygen at the surface.

What size bottom diffuser aerator do I need for my pond?

Match the aerator to your pond's surface acreage and depth. Our collection includes systems sized for ponds from 1/4 acre up to 12 acres. As a general rule, the deeper your pond the more powerful the compressor you'll need. Call our pond specialists at 888-825-6214 for a free recommendation based on your pond's specific size, shape, and depth.

Is bottom diffuser aeration better than surface aeration?

Both serve important roles. Bottom diffuser aeration is generally superior for deeper ponds because it oxygenates the entire water column from the floor up, eliminates thermal stratification, and reduces muck buildup on the pond bottom. Surface aerators are better suited for shallower ponds under 6 feet. For deeper ponds with fish, bottom diffusion is usually the more effective long-term solution.

Will a bottom diffuser aerator help with algae?

Yes. Bottom diffuser aeration disrupts the stagnant, stratified conditions that algae thrive in. By continuously circulating and oxygenating the water column, it reduces nutrient buildup at the pond bottom — one of the primary fuel sources for algae blooms. While aeration alone won't eliminate algae entirely, it is one of the most effective preventative tools for long-term algae control.

Can a bottom diffuser aerator run year-round?

Yes — and it should. Year-round aeration is critical for fish health, especially in winter. In cold months, bottom aeration keeps oxygen exchange happening under the ice and can help maintain an open hole for gas exchange, protecting fish from winterkill. In summer, it prevents the thermal stratification and oxygen depletion that leads to fish kills during heat waves.

Where should I place the compressor for a bottom diffuser aerator?

The compressor should be placed on shore, out of the water, in a well-ventilated location protected from direct weather exposure. Most systems include a weatherproof compressor cabinet or can be housed in a shed or shelter. Position it as close to the pond's edge as your cable and tubing length allows to minimize air pressure loss over distance.

How deep can a bottom diffuser aerator work?

Depth capability varies by model. Shallow pond systems are designed for water 7 feet deep or less. Mid-range compressors typically handle depths up to 50 feet, and our heavy-duty systems can operate at depths up to 65 feet. Always match your compressor's rated operating depth to your pond's actual maximum depth for optimal performance.

Is a bottom diffuser aerator safe for fish?

Yes — bottom diffuser aeration is one of the best things you can do for fish health. It increases dissolved oxygen levels, eliminates dead zones where fish can suffocate, reduces toxic gas buildup on the pond floor, and creates a more stable, balanced aquatic environment year-round. Most fish kills are caused by oxygen depletion, which proper bottom aeration directly prevents.

Do bottom diffuser aerators require a lot of maintenance?

No — bottom diffuser aerators are among the lowest-maintenance pond management tools available. The onshore compressor should be inspected periodically for air filter cleanliness and proper operation. Diffuser membranes may need occasional cleaning or replacement depending on water conditions. Most systems require only a few hours of maintenance per year to keep running at full efficiency.

Bottom Diffuser Aerators

Filters

Sort by

View as

Sale

Healthy Aquatics PAS20
Able to aerate ponds up to 3 acre, compressor operates up to 65' deep while the motor draws 6.2 amps and pumps 4.7 CFM of air.

from $570.00

| /

Healthy Aquatics (HQUA) Healthy Aquatics PAS20 Pond & Lake Aeration System An affordable, high-efficiency 3/4 HP diffused aeration sys...
View full details

from $570.00

| /
Sale

EasyPro PA6SWN Shallow Pond Aerator
For ponds 7′ deep or less, these linear powered aeration systems are a great choice!

$539.00

| /

EasyPro Aerators EasyPro PA6SWN Shallow Pond Aerator A single-diffuser linear aeration system built for shallow ponds 7' deep or less — qu...
View full details

$539.00

| /
Sale

Pond Aerator for Small Ponds up to 1 Acre – Airmax PS10
Discover the capabilities of the Airmax PondSeries Aeration System, which can aerate large ponds up to 6 acres in size and offers configurable options for unusual forms and depths of up to 50 feet.

from $1,649.99

| /

Airmax Pond Aerators Airmax PS10 Pond Aeration System A 1/4 HP bottom-diffused aeration system that brings oxygen to ponds up to 1 acre an...
View full details

from $1,649.99

| /
Sale

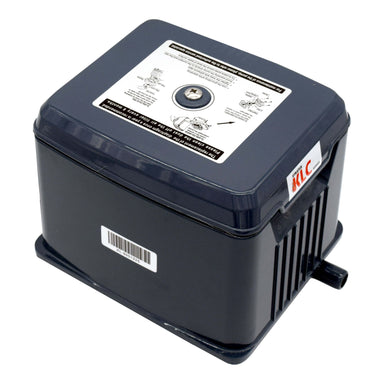

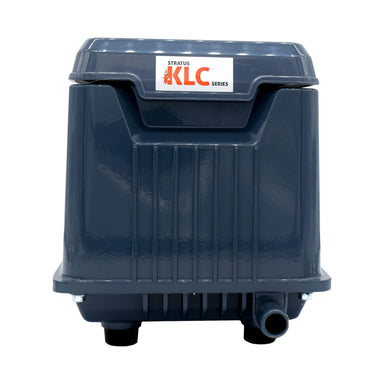

KLC80 Stratus KLC Series Pond Aerator

$430.10

| /

Supplying adequate oxygen levels and circulation during hot summer months or deicing during freezing months is critical for pond and fish care.

$430.10

| /
Sale

EasyPro PA34-2D Sentinel Deluxe Aeration System – Complete PA34-2 system with cabinet

$1,883.00

| /

EasyPro Aerators EasyPro PA34-2D Sentinel Deluxe Aeration System A complete, cabinet-housed dual-diffuser aeration system for ponds up to ...
View full details

$1,883.00

| /
Sale

Vertex PondLyfe 1 Diffused Aeration System
Enjoy Natures Beauty With The Vertex PondLyfe 1 Aeration System

from $1,863.00

| /

Vertex Aeration Systems Vertex PondLyfe 1 Diffused Aeration System A durable, quiet 1/4 HP aeration system for small ponds up to 1.5 acres...
View full details

from $1,863.00

| /
Sale

Airmax PS20 Aerator For Ponds Up To 2 Acres
The Airmax PS20 enriches a lake or pond with essential oxygen, especially where muck and organic detritus build up on the bottom of the body of water.

from $2,399.99

| /

Airmax Pond Aerators Airmax PS20 Pond Aeration System A 1/2 HP bottom-diffused aeration system that brings oxygen to ponds up to 2 acres a...
View full details

from $2,399.99

| /
Sale

EasyPro 1/4 HP Rocking Piston Aeration System PA34W
A dependable and efficient solution designed to enhance the health and vitality of your pond or water feature.

from $912.00

| /

The PA34W Rocking Piston Pond Aeration System is a dependable and efficient solution designed to enhance the health and vitality of your pond or wa...
View full details

from $912.00

| /
Sale

EasyPro Deluxe Linear Aeration Kit - 7500 to 20000 gallons

$544.13

| /

Garden Pond Aeration Kits EasyPro Deluxe Linear Aeration Kit — 7,500 to 20,000 Gallons Pump up your koi pond's productivity — our largest ...
View full details

$544.13

| /

Transform Your Pond with Powerful Bottom Diffuser Aerators

Improve the health and vitality of your pond with our cutting-edge Bottom Diffuser Aerators collection. From small water features to expansive ponds up to 12 acres, our aerators are designed to provide efficient aeration and enhance water quality.

Explore Our Collection for:

Efficient Oxygenation: Enhance the oxygen levels in your pond to support fish health and overall ecosystem balance.
Algae Control: Minimize algae growth with proper aeration, creating clearer and more visually appealing water.
Custom Solutions: Find the perfect bottom diffuser aerator tailored to your pond size and specific needs.
Durable Performance: Our aerators are built to withstand the elements, ensuring long-lasting, reliable operation.

Whether you have a quarter-acre pond or an expansive water body, our Bottom Diffuser Aerators offer versatile solutions for maintaining a vibrant and thriving aquatic environment. Explore the collection and revolutionize your pond's health today.
