What is a bottom diffuser aerator and how does it work?

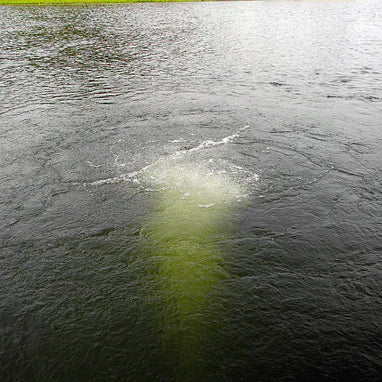

A bottom diffuser aerator sits on the floor of your pond and is connected by weighted tubing to an onshore air compressor. The compressor pumps air through the tubing to the diffuser, which releases thousands of tiny bubbles. Those bubbles rise to the surface, creating an upward current that lifts oxygen-depleted water from the bottom, mixes the entire water column, and replenishes oxygen at the surface.

What size bottom diffuser aerator do I need for my pond?

Match the aerator to your pond's surface acreage and depth. Our collection includes systems sized for ponds from 1/4 acre up to 12 acres. As a general rule, the deeper your pond the more powerful the compressor you'll need. Call our pond specialists at 888-825-6214 for a free recommendation based on your pond's specific size, shape, and depth.

Is bottom diffuser aeration better than surface aeration?

Both serve important roles. Bottom diffuser aeration is generally superior for deeper ponds because it oxygenates the entire water column from the floor up, eliminates thermal stratification, and reduces muck buildup on the pond bottom. Surface aerators are better suited for shallower ponds under 6 feet. For deeper ponds with fish, bottom diffusion is usually the more effective long-term solution.

Will a bottom diffuser aerator help with algae?

Yes. Bottom diffuser aeration disrupts the stagnant, stratified conditions that algae thrive in. By continuously circulating and oxygenating the water column, it reduces nutrient buildup at the pond bottom — one of the primary fuel sources for algae blooms. While aeration alone won't eliminate algae entirely, it is one of the most effective preventative tools for long-term algae control.

Can a bottom diffuser aerator run year-round?

Yes — and it should. Year-round aeration is critical for fish health, especially in winter. In cold months, bottom aeration keeps oxygen exchange happening under the ice and can help maintain an open hole for gas exchange, protecting fish from winterkill. In summer, it prevents the thermal stratification and oxygen depletion that leads to fish kills during heat waves.

Where should I place the compressor for a bottom diffuser aerator?

The compressor should be placed on shore, out of the water, in a well-ventilated location protected from direct weather exposure. Most systems include a weatherproof compressor cabinet or can be housed in a shed or shelter. Position it as close to the pond's edge as your cable and tubing length allows to minimize air pressure loss over distance.

How deep can a bottom diffuser aerator work?

Depth capability varies by model. Shallow pond systems are designed for water 7 feet deep or less. Mid-range compressors typically handle depths up to 50 feet, and our heavy-duty systems can operate at depths up to 65 feet. Always match your compressor's rated operating depth to your pond's actual maximum depth for optimal performance.

Is a bottom diffuser aerator safe for fish?

Yes — bottom diffuser aeration is one of the best things you can do for fish health. It increases dissolved oxygen levels, eliminates dead zones where fish can suffocate, reduces toxic gas buildup on the pond floor, and creates a more stable, balanced aquatic environment year-round. Most fish kills are caused by oxygen depletion, which proper bottom aeration directly prevents.

Do bottom diffuser aerators require a lot of maintenance?

No — bottom diffuser aerators are among the lowest-maintenance pond management tools available. The onshore compressor should be inspected periodically for air filter cleanliness and proper operation. Diffuser membranes may need occasional cleaning or replacement depending on water conditions. Most systems require only a few hours of maintenance per year to keep running at full efficiency.

Bottom Diffuser Aerators

Filters

Sort by

View as

Pond Aerator Windmill – Becker Windmill Aerator For Remote Ponds Up To 2 Acres
The four-legged Becker Windmill Pond Aerator stands stronger, aerates harder, and runs forever on nothing but wind.

from $2,930.00

| /

Utilize The Power Of Wind With The Becker Windmills Four Legged Windmill Aerator FALL SALE! - Use the code WIND200 and get $200 off! “Absolutely ...
View full details

from $2,930.00

| /
EasyPro KLC Koi Pond Aeration Kit - 4000 to 30000 Gallons ponds

$512.99

| /

Give Your Koi Pond The Best You Can Give Ensure adequate oxygen and circulation during hot summer months De-icing capability during freezing month...
View full details

$512.99

| /
EasyPro KLC Koi Pond Aeration Kit - 2000 to 15000 Gallons ponds

$446.00

| /

Elevate Your Koi Pond! Ensure adequate oxygen and circulation during hot summer months De-icing capability during freezing months Dual linear diap...
View full details

$446.00

| /
Healthy Aqua PAS10 Pond & Lake Aerator System

from $500.00

| /

Pond Clarity At An Affordable Price - The Healthy Aqua PAS10 Aerator System PAS10 Features and Specs Pump Size 16″ × 14″ × 8″ (40cm × 35cm...
View full details

from $500.00

| /
EasyPro 4 Acre PA86AD Rocking Piston Pond Aerator – With cabinet
An all-inclusive solution for ponds up to four acres, adapting to various shapes and depths.

$3,023.00

| /

PA86AD Sentinel Deluxe Aeration System – Complete PA86A system with cabinet Sentinel Deluxe Aeration Systems are designed for convenience and relia...
View full details

$3,023.00

| /
EasyPro TA2W TurboAir 24v Direct Drive Solar Aeration System

$5,695.00

| /

No Power? No Problem With The EasyPro TA2W TurboAir Highest CFM in the industry for Direct Drive Solar. The TurboAir Direct Drive Solar Aeration S...
View full details

$5,695.00

| /
Bubble Pro Max Subsurface Aerator
Bubble Pro sub-surface aeration systems are engineered for straightforward installation and reliable performance. Each model is backed by a two-year warranty and is offered in both 115-volt and 230-volt configurations.

from $1,749.00

| /

Shop the Scott Aerator Bubble Pro Max 1/2 HP subsurface pond aerator. Efficient bottom diffused aeration system for healthier ponds and lakes.

from $1,749.00

| /
Scott Aerator Bubble Pro Sub-Surface Aerator
Scott Aerator Bubble Pro 1/4 HP sub-surface pond aerator improves oxygen levels and circulation. Ideal bottom aeration system for ponds up to 1 acre.

from $1,119.00

| /

Scott Aerator Bubble Pro 1/4 HP sub-surface pond aerator improves oxygen levels and circulation. Ideal bottom aeration system for ponds up to 1 acre.

from $1,119.00

| /

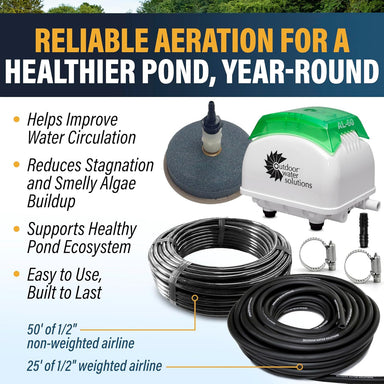

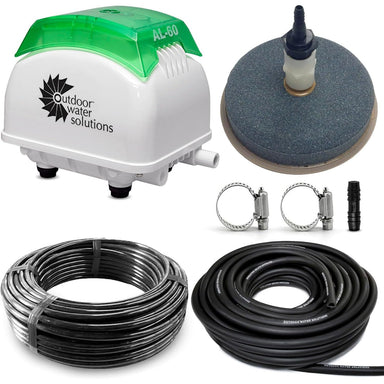

Outdoor Water Solutions AerMaster LD 1.5 Shallow Pond Aeration
Designed to oxygenate ponds up to 3/4 acre and 8 feet deep

$495.00

| /

The AerMaster LD 1.5 Electric Pond Aerator is the no-hassle solution for improving water quality in small to medium ponds.

$495.00

| /

Transform Your Pond with Powerful Bottom Diffuser Aerators

Improve the health and vitality of your pond with our cutting-edge Bottom Diffuser Aerators collection. From small water features to expansive ponds up to 12 acres, our aerators are designed to provide efficient aeration and enhance water quality.

Explore Our Collection for:

Efficient Oxygenation: Enhance the oxygen levels in your pond to support fish health and overall ecosystem balance.
Algae Control: Minimize algae growth with proper aeration, creating clearer and more visually appealing water.
Custom Solutions: Find the perfect bottom diffuser aerator tailored to your pond size and specific needs.
Durable Performance: Our aerators are built to withstand the elements, ensuring long-lasting, reliable operation.

Whether you have a quarter-acre pond or an expansive water body, our Bottom Diffuser Aerators offer versatile solutions for maintaining a vibrant and thriving aquatic environment. Explore the collection and revolutionize your pond's health today.
