Why do I need a pond aerator, and what are the benefits?

A pond aerator increases oxygen levels, improves water circulation, reduces algae growth, prevents fish kills, and eliminates foul odors caused by stagnant water.

How do I determine the right size aerator for my pond?

The right aerator depends on your pond’s size, depth, and shape. Deeper ponds require bottom-diffused aeration, while shallower ponds may benefit from surface aerators or fountains.

What is the difference between a bottom-diffused aerator and a surface aerator?

Bottom-diffused aerators push air to the pond’s bottom, efficiently circulating water in deeper ponds. Surface aerators or fountains create surface movement, providing oxygen to the upper layers and offering visual appeal.

How much electricity does a pond aerator use?

Energy consumption varies by model and horsepower. Many aerators are designed to run 24/7 with efficient, low-power compressors to minimize electricity costs.

Can I run my aerator year-round, even in winter?

Yes! Aerators help prevent winter fish kills by keeping a portion of the pond ice-free, allowing for gas exchange. However, in extremely cold climates, adjusting placement or reducing operation may be necessary.

How loud is a pond aerator, and where should I place the compressor?

Most high-quality aerators operate quietly, with sound-dampening enclosures available. The compressor should be placed on dry, level ground near a power source, ideally in a ventilated cabinet for protection.

What maintenance does a pond aerator require?

Regular maintenance includes cleaning air filters, checking airline tubing and diffusers for clogs, and ensuring the compressor is functioning properly. Most aerators are designed for minimal upkeep and long-term performance.

How long will it take to get my aerator?

Products tend to arrive within 5-7 days

Yes. All products come with manufacturers warranty.

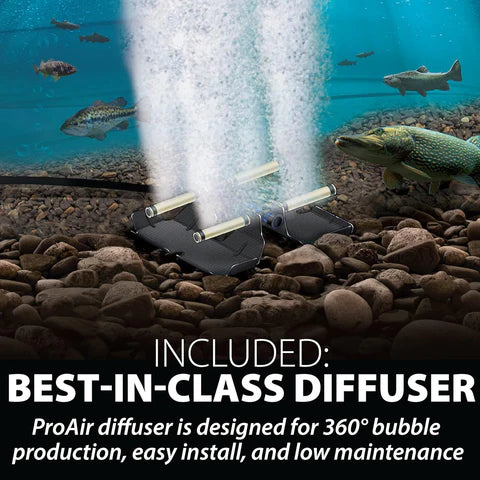

One Airmax PS40 diffuser at bottom of pond with fish swimming nearby and the words best in class below image

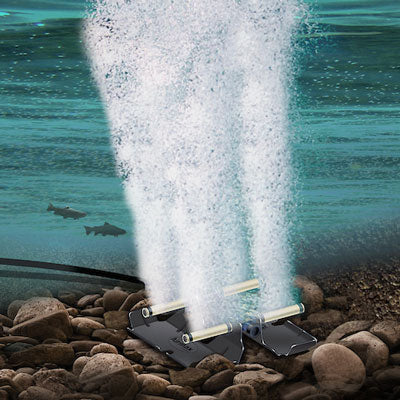

Pond Aerator System for Up to 4 Acres – Airmax PS40 Bottom Diffused Aeration System

$3,254.00

Found a Better Price? We'll Beat It — Guaranteed.
Call us anytime. Real pond experts.

📞 888-825-6214
✉️ support@yourpondpros.com

🔴⚪🔵 Military, Veterans and First Responders— Save 15% instantly. Verify with ID.me.

Verification by IDMe • What is IDMe?

Select Voltage

115V

230V

Diffusers

3 Diffusers

4 Diffusers

Airline

No Airline

300 Foot Roll

400 Foot Roll

Quantity

✓ SSL Secure Online Checkout

✓ Free 30 Day Returns

✓ FREE Shipping On All Pond Fountains And Aerators

✓ 100% Price Match Guarantee

Airmax Pond Aerators

Airmax PS40 Pond Aeration System

A 3/4 HP bottom-diffused aeration system that brings oxygen to ponds up to 4 acres and 50 feet deep — cleaner, clearer water in as little as 90 days.

✓ Free Shipping ✓ 10-Year Cabinet Warranty ✓ Aerates Up to 4 Acres ✓ 888-825-6214

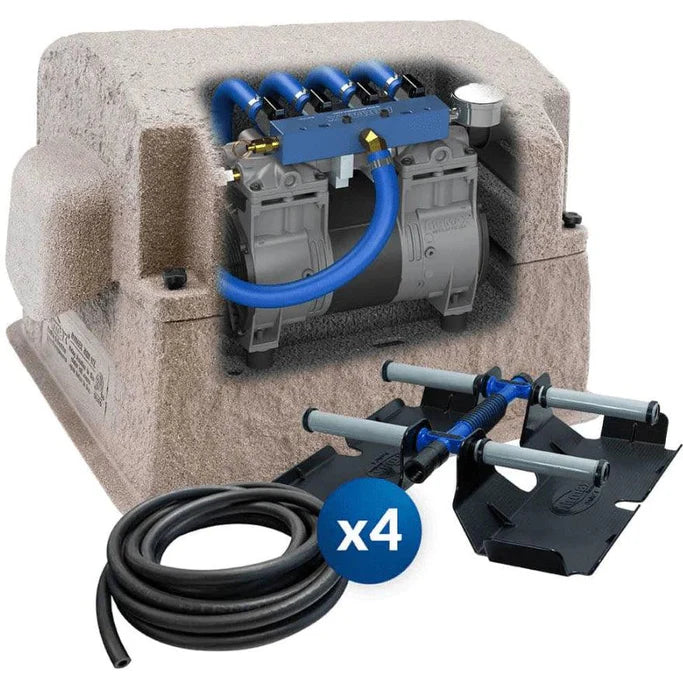

What's Included

3 or 4 ProAir4 weighted diffusers (choose at checkout)

Optional 300 or 400 ft weighted airline rolls

3/4 HP SilentAir rocking piston compressor

Pressure gauge & relief valve

6 ft power cord

Weatherproof composite cabinet with cooling system

Why Aerate Your Pond?

The Airmax PS40 works from the bottom up, adding oxygen right where muck and organic debris settle. A shore-mounted compressor pushes air through multiple weighted diffusers on the pond floor, creating rising bubble columns that circulate the entire water column and prevent thermal stratification. With more dissolved oxygen and active natural bacteria, excess nutrients get metabolized instead of building up — leaving you with cleaner, clearer water and noticeably less muck, often within 90 days.

Key Features

🌊

Aerates Up to 4 Acres

Coverage scales with pond depth — see the sizing table below to find your range.

🤫

SilentAir Compressor

Whisper-quiet 3/4 HP rocking piston compressor with SmartStart Technology for safe pressurized restarts.

🏠

Weatherproof Cabinet

Faux-rock composite cabinet blends into the landscape while protecting internal components — 10-year warranty.

🔧

Flexible Installation

Install at the water's edge or up to 1/4 mile away — no electrician required with Airmax EasySet airline.

💰

Low Operating Cost

Runs 24/7 for as little as $35.40 per month in electricity.

📅

Results in 90 Days

Most ponds show visibly cleaner, clearer water within the first three months of continuous operation.

Get Mine Now →

Aeration Coverage by Pond Depth

The deeper your pond, the more surface area the PS40 can effectively aerate:

Pond Depth	Aeration Coverage
6' – 9' deep	Up to 2 acres
9' – 12' deep	Up to 3 acres
Over 12' deep	Up to 4 acres

Technical Specifications

Max Pond Size	Up to 4 Acres
Max Diffuser Depth	50 ft
Compressor	3/4 HP SilentAir Rocking Piston
Running Amps	4.3A (115V) or 2.15A (230V)
Voltage	115V or 230V
Wattage	495 Watts
Max CFM	5.6
Diffusers	3 or 4 ProAir4 Weighted Diffusers (configuration dependent)
Cabinet	Airmax Composite Cabinet, 23"L x 17"W x 15"H
Power Cord	6 ft Cabinet Cord / 2'6" Compressor Cord
Monthly Operating Cost (24/7)	$35.40*
ProAir Diffuser Warranty	5 Years
Compressor & Electrical Warranty	3 Years
Composite Cabinet Warranty	10 Years
EasySet Airline Warranty	5 Years

*Estimated cost based on average electricity rates; actual cost varies by location.

Built to Last

SilentAir Compressor with SmartStart Technology

The heart of the system is a whisper-quiet 3/4 HP rocking piston compressor with rubber mounts for reduced noise and vibration. SmartStart Technology protects the compressor during pressurized restarts after a power interruption. Backed by a 3-year warranty.

Airmax Composite Cabinet

An ETL-certified composite cabinet with a faux-rock finish blends into any landscape while protecting the compressor and electrical components. An elevated base guards against flood water, and a ventilation fan with rain shroud keeps things cool and dry. Backed by a 10-year warranty.

Airflow Manifold Assembly

Airmax simplifies airflow management with dual 4-port manifolds featuring nickel-plated ball valves, braided hose sleeves that protect internal airlines from wear, and quick disconnects for fast, secure connections and easy removal for storage. Set up for either 3/8" or 5/8" airline — 5/8" is recommended if total airline length exceeds 600 ft.

ProAir4 Weighted Diffusers

High-efficiency membrane diffusers release fine oxygen bubbles into the water column without the maintenance headaches of traditional air stones. An integrated check valve prevents backpressure on the compressor, and the weighted sled keeps each diffuser upright and submerged during installation. Backed by a 5-year warranty.

Need a Replacement Part?

🔧 Replacement Compressor

If your PS40's compressor has failed, the genuine Airmax T75 (RP75) 3/4 HP replacement motor is a direct fit.

Shop PS40 Replacement Motor →

Resources

📄Airmax PondSeries Aeration System Owner's Manual 📄ProAir 4 Diffuser Installation Instructions

Frequently Asked Questions

How do I know which coverage I'll get from the PS40?

Coverage depends on your pond's depth: 6'-9' deep aerates up to 2 acres, 9'-12' deep up to 3 acres, and over 12' deep up to 4 acres.

Should I choose 3 or 4 diffusers?

More diffusers generally means better distribution across a larger or irregularly shaped pond. If you're unsure, call us and we'll help you size it based on your pond's dimensions.

Can the cabinet be installed far from the pond?

Yes — the compressor cabinet can sit at the water's edge or up to 1/4 mile away, connected by airline, so you're not limited to running power right to the shoreline.

Do I need an electrician to install this?

No special wiring is required at the pond itself — Airmax EasySet airline delivers oxygen to the water while the compressor plugs into a standard outlet at the cabinet location.

How long until I see results?

Most pond owners notice visibly cleaner, clearer water within about 90 days of continuous operation.

What's covered under warranty?

The ProAir diffusers and EasySet airline are covered for 5 years, the compressor and electrical components for 3 years, and the composite cabinet for 10 years.

My compressor stopped working — can I buy just that part?

Yes — the T75 (RP75) 3/4 HP replacement compressor is sold separately and is a direct fit for the PS40.

Questions? Our pond experts are ready to help.

Call or email us — we'll help you size the right aeration system for your pond.

📞 888-825-6214
