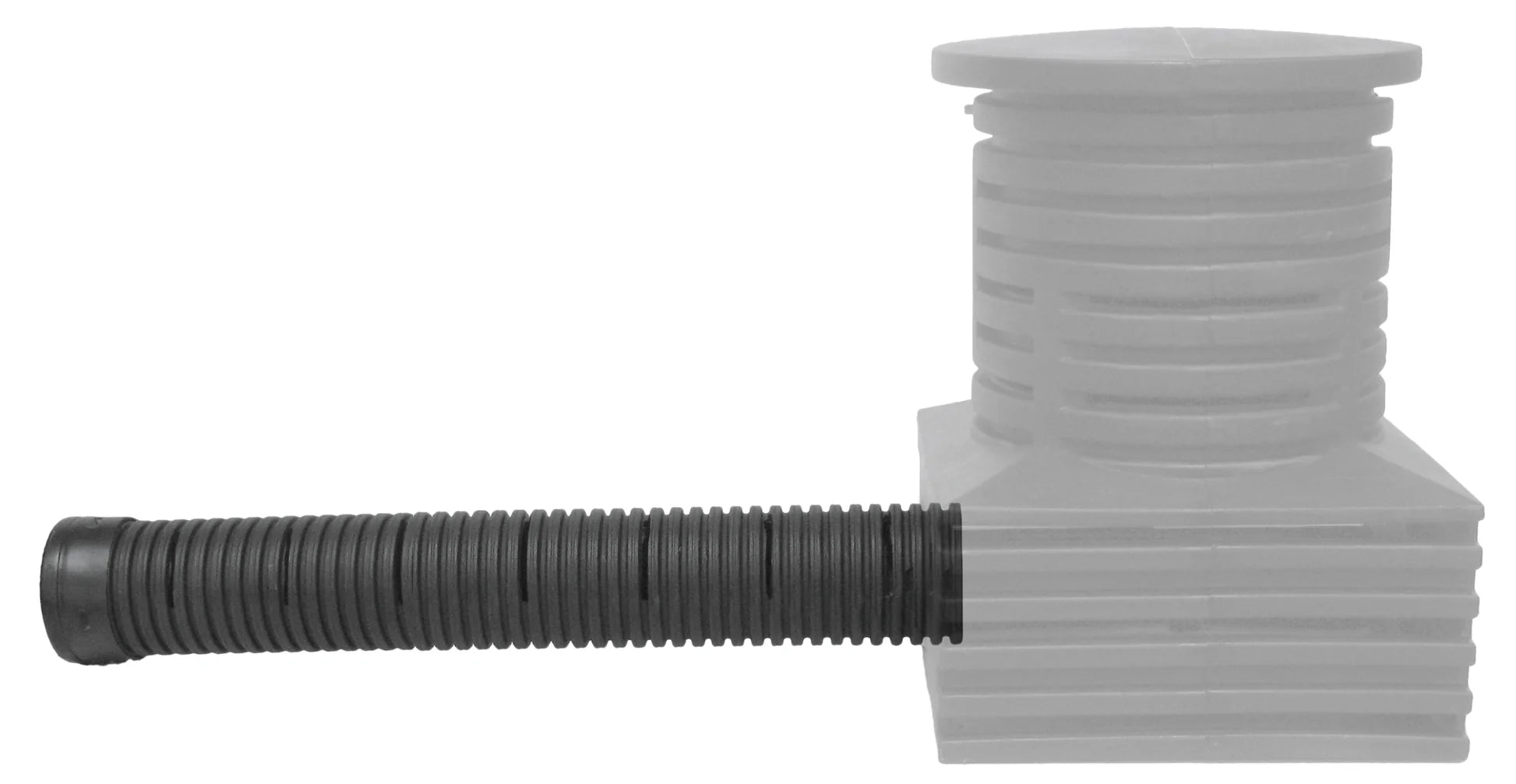

Boost your JAFV Large Pump Vault's flow capacity from 18,000 GPH to 23,000 GPH with this simple add-on intake tube.
The JAFV30 intake tube is an optional upgrade for the JAFV Large Pump Vault, increasing its maximum flow capacity from 18,000 GPH to 23,000 GPH. It's an easy way to get more performance out of a large high-flow feature without needing a different vault.
| Spec | Value |
|---|---|
| Dimensions | 8" Diameter x 30" Long |
| Flow Increase | Adds 5,000 GPH (18,000 → 23,000 GPH) |
| Compatible With | JAFV Large Pump Vault |
| SKU | JAFV30 |
Do I need this for my JAFV vault?
No — it's optional. The JAFV handles up to 18,000 GPH standard. Add this tube only if you need the extra 5,000 GPH of capacity.
Will this work with the JAFT or JAFM vaults?
No — this tube is sized specifically for the JAFV. The JAFM small vault uses the smaller JAFM30 intake tube instead.
