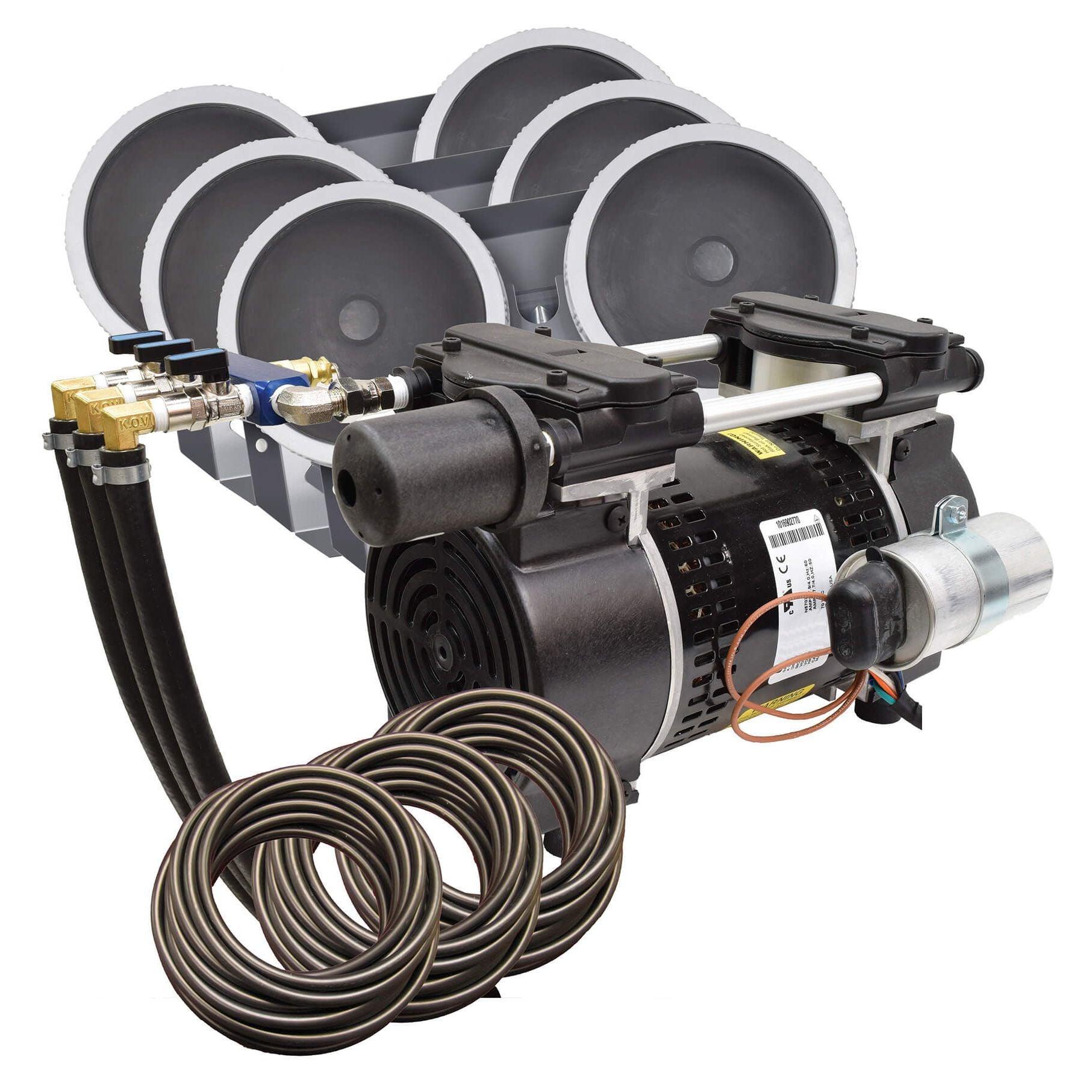

A complete triple-diffuser aeration system for ponds up to 3 acres — 300 ft of weighted tubing included, ready to run.
Three dual-head QS2 diffusers aerate ponds up to 3 acres, depending on shape and depth.
Typical operating cost around $1.10 per day at $0.09/kWh.
Rated for depths up to 50 feet, moving up to 6.5 CFM of air.
300 ft of weighted 3/8" Quick Sink tubing ships in the box — ready to install.
2-year warranty on the compressor, 5-year warranty on tubing and diffusers.
The compressor requires weather protection — pair with a compressor cabinet for outdoor placement.
| Spec | Value |
|---|---|
| Horsepower | 3/4 HP |
| Compressor | Stratus™ SRC75 Gen 2 (Rocking Piston) |
| Voltage | 115V or 230V |
| Amperage | 4.5A / 2.3A at 10' operating depth |
| Maximum Airflow | 6.5 CFM |
| Maximum Depth | 50 ft |
| Number of Diffusers | 3 (QS2 Dual-Head Quick Sink) |
| Tubing Included | 300 ft of 3/8" Weighted Quick Sink |
| Weight | 128 lbs |
| Suggested Pond Size | Up To 3 Acres |
| Warranty | 2-Year Compressor, 5-Year Tubing/Diffusers |
This kit requires weather protection for the compressor — pair with a lockable steel cabinet.
Shop Cabinets →Improve the appearance of your pond and help block sunlight that fuels algae growth with concentrated lake dye packets.
Shop Pond Dye →Pair aeration with beneficial bacteria pellets to break down organic sludge on the pond bottom.
Shop Sludge Remover →How big of a pond can this system handle?
The PA83W is rated for ponds up to about 3 acres, depending on depth and shape, and can aerate down to 50 feet.
Does this come with tubing?
Yes — 300 feet of weighted 3/8" Quick Sink tubing is included, so you're ready to install right out of the box.
Does the compressor need to be protected from the weather?
Yes. This kit does not include a cabinet, so the compressor requires weather protection — we recommend pairing it with a weatherproof cabinet.
How much does it cost to run?
Typical operation runs around $1.10 per 24 hours at $0.09/kWh, though actual cost varies by local electricity rates.
What's the warranty?
2 years on the compressor, and 5 years on the tubing and diffusers.
