A contractor-grade pump vault that houses your pump in a Just-A-Falls reservoir, built heavy duty to withstand the pressure of being buried under rock.

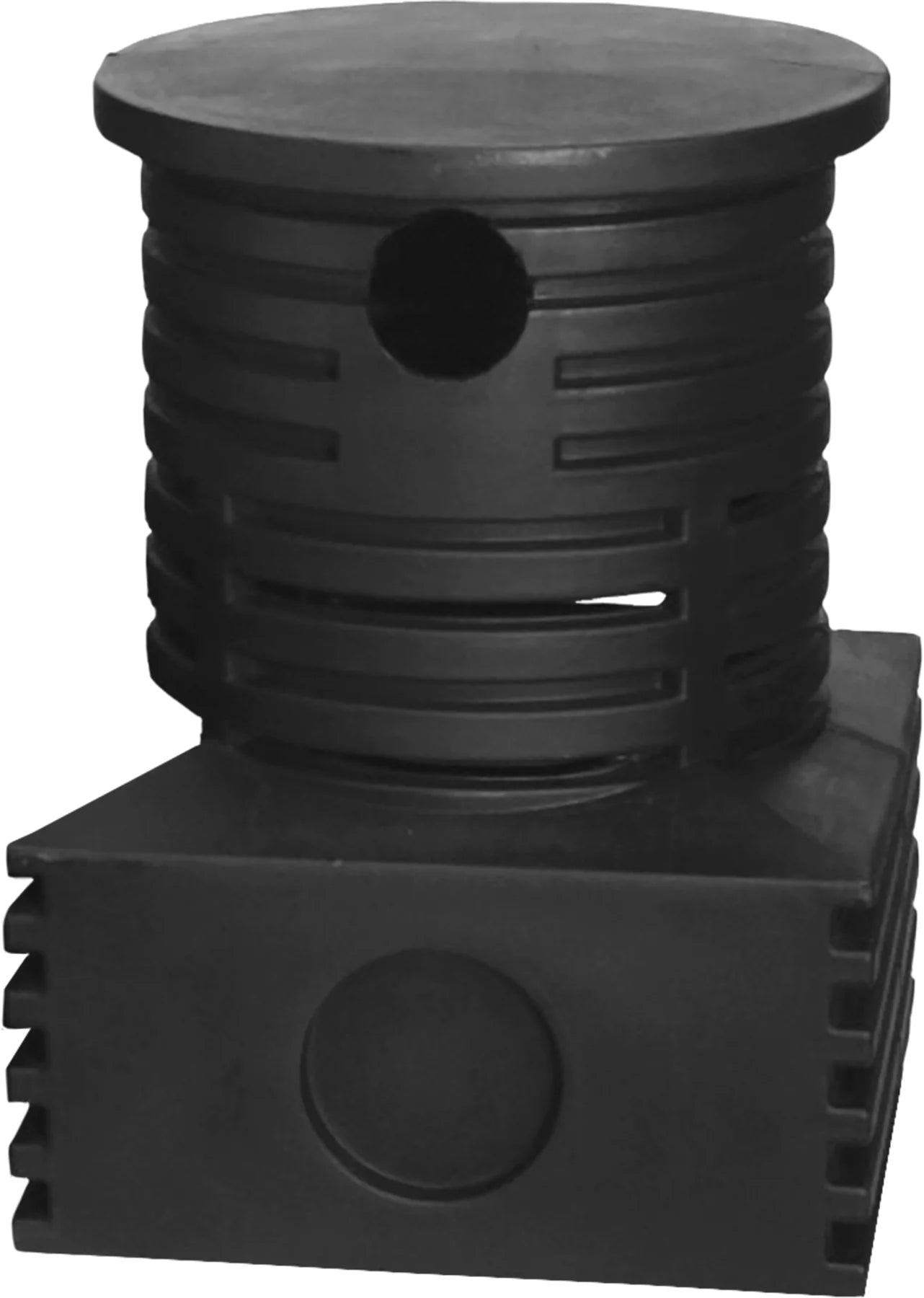

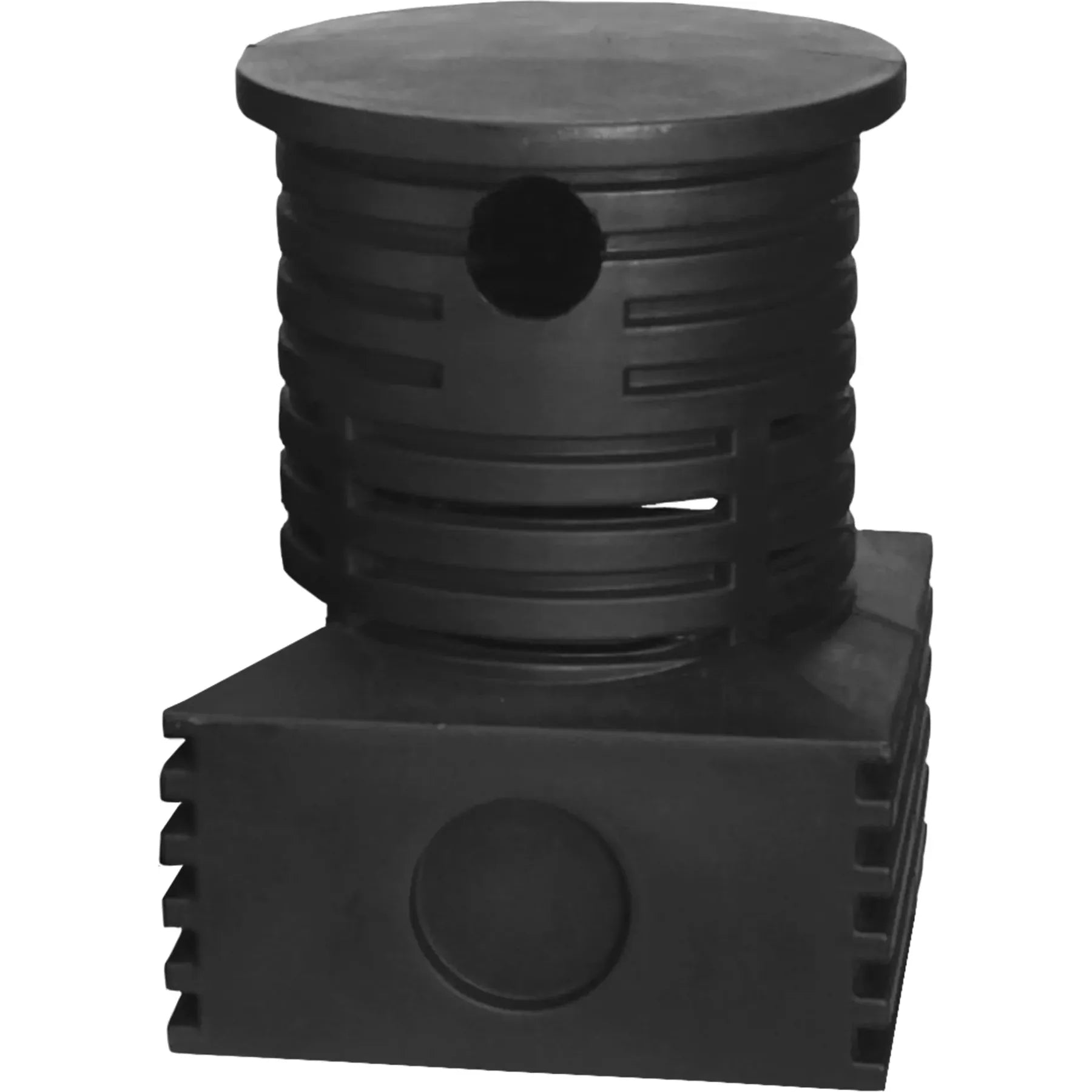

The JAFM Pro-Series Small Pump Vault is designed to house pumps in a Just-A-Falls water reservoir. The slots cut into the sides allow water to flow freely to the pump chamber, with a maximum standard flow of 7,500 GPH. Using a pump vault not only protects your pump from the weight of rock and gravel above, it also makes routine maintenance and service far easier — no digging required.
Working in a tight area and need a deeper reservoir? Pair this vault with the JAFME extension while keeping easy pump access. Want more flow? The optional JAFM30 intake tube boosts capacity to 10,000 GPH.
Heavy duty construction withstands the pressure of being buried under rock.
Skip the digging — remove the lid to reach your pump for routine maintenance.
Use with a JAFME extension for deeper reservoirs in tight spaces.
Add the optional JAFM30 intake tube to boost capacity from 7,500 to 10,000 GPH.
| Spec | Value |
|---|---|
| Dimensions | 16"W x 16"L x 22"H |
| Max Flow Rate (Standard) | 7,500 GPH |
| Max Flow Rate (w/ JAFM30 Intake Tube) | 10,000 GPH |
| Weight | 30 lbs |
| Compatible Extension | JAFME |
| Construction | Roto-Molded |
| SKU | JAFM |
How much flow can this vault handle?
Up to 7,500 GPH standard, or 10,000 GPH with the optional JAFM30 intake tube.
Can I dig a deeper reservoir?
Yes — pair this vault with a JAFME extension to go deeper while keeping easy pump access, even in tight spaces.
How do I service the pump?
Simply remove the vault lid — no need to dig through rock to reach the pump.
Is this suitable for professional installs?
Yes — this is EasyPro's Pro-Series, built contractor-grade for heavy-duty, long-term use.
