A true showstopper — a commanding 5 HP motor with five interchangeable spray patterns, built for large ponds and lakes that call for a grand display.

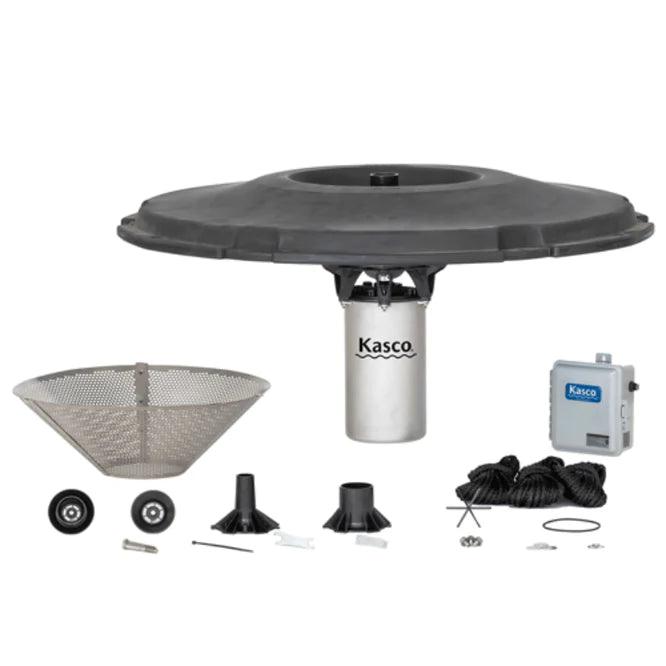

The Kasco J Series 5 HP Floating Fountain is a true showstopper, combining a commanding 5 HP motor with impressive water displays that will leave you breathless. Watch as the water shoots into the air in mesmerizing patterns, elevating any pond or lake. Five easy-to-change nozzles are included, plus premium nozzles are available separately if you want even more options.
As a sizing rule of thumb, Kasco generally recommends 2 HP per acre for J Series fountains (1.5 HP per acre for VFX Series). These are guidelines rather than hard rules — pond owners may choose a smaller unit depending on fish load and algae severity. Call us and we'll help you size it correctly for your pond.

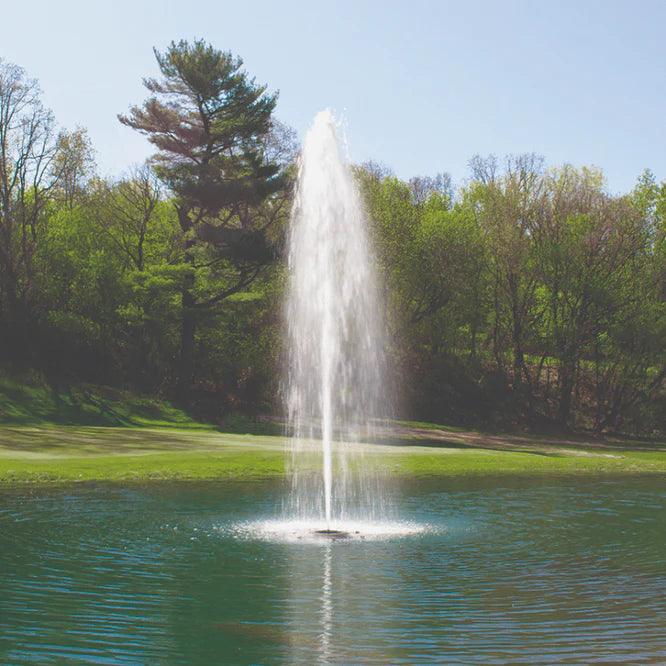

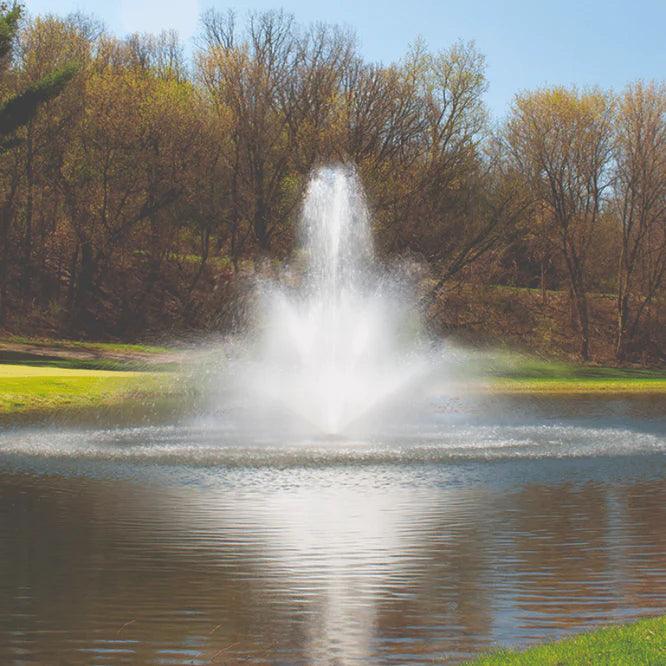

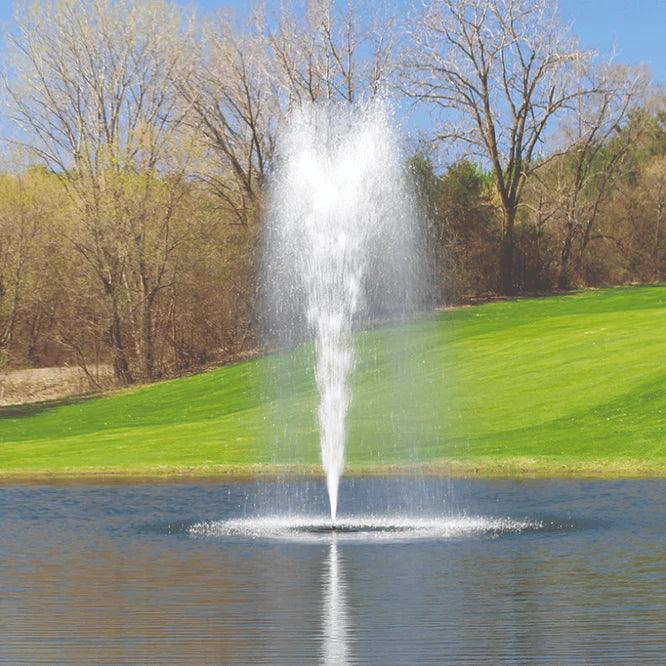

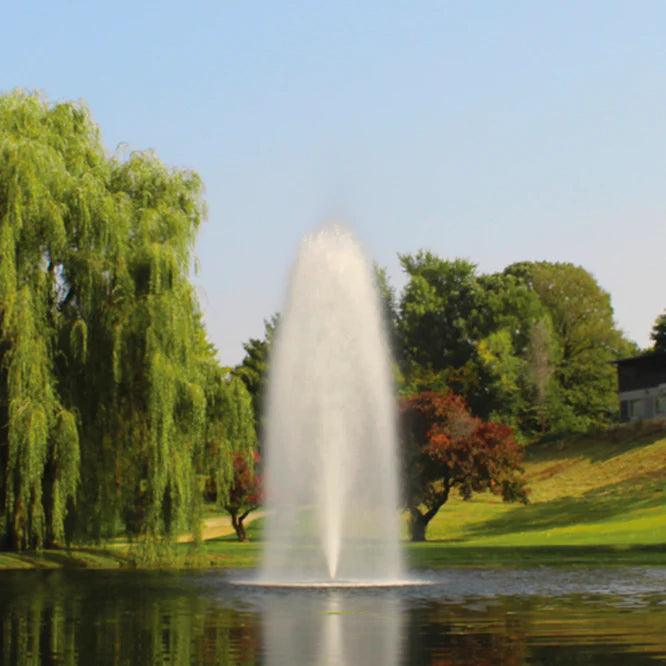

Redwood, Spruce, Birch, Linden, and Balsam — patterns up to 32 ft tall and 46 ft wide.
Operates in water as shallow as 26 inches deep.
Dual timer, GFCI protection, and a photo eye for automatic light operation.
One-piece hex design is easy to install and clean, helping prevent clogs from debris.
Optional lighting packages available to add a striking nighttime display.
Backed by Kasco's extended manufacturer warranty for peace of mind.
| Pattern | Height | Width |
|---|---|---|
| Redwood | 32 ft | 8 ft |
| Spruce | 31 ft | 12 ft |
| Birch (no nozzle) | 24 ft | 14 ft |
| Linden | 25 ft | 46 ft (outer) |
| Balsam | 18 ft | 34 ft |
| Motor | 5 HP |
| Voltage | 208-240V |
| Phase | Single or Three Phase available |
| Amps | 20 |
| Min. Operating Depth | 26 in |
| Cord Length Options | 100–500 ft |
| Control Panel | C-95 (dual timer, GFCI protected) |
| Warranty | 5 Years |
Kasco recommends a licensed electrician install the C-95 control panel and hard-wire the fountain to it.

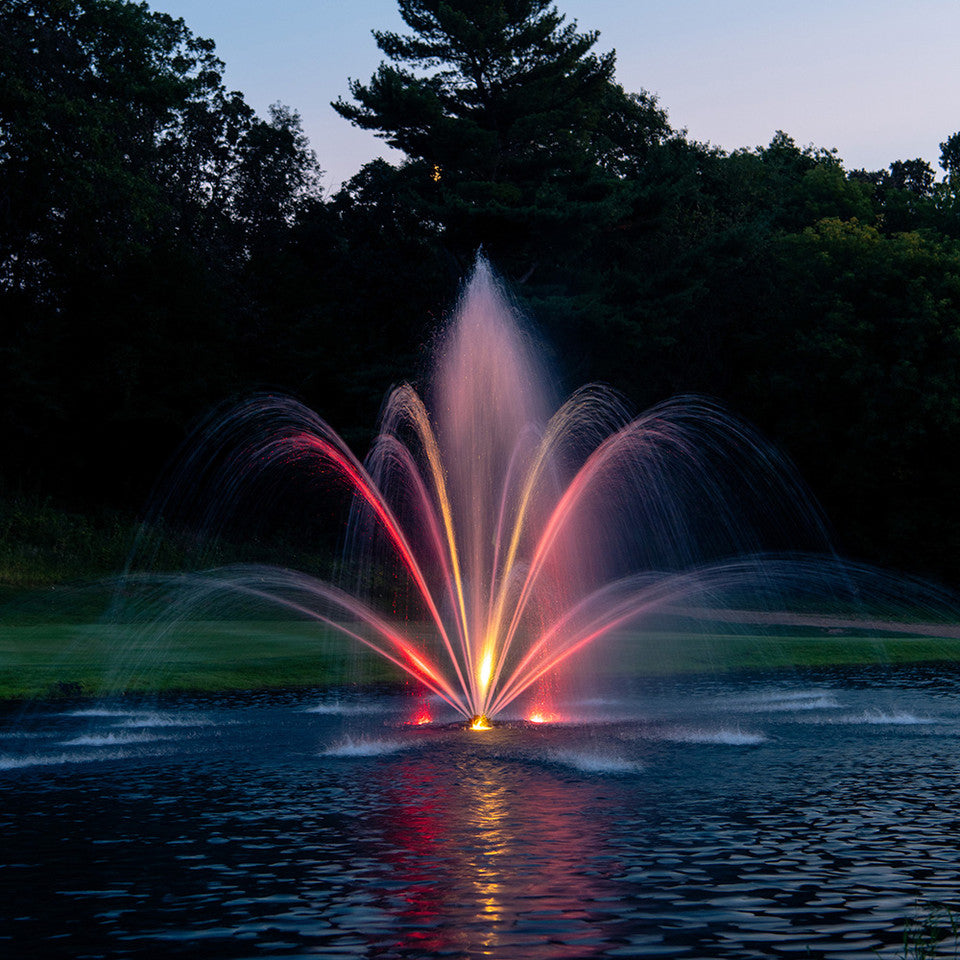

Illuminate your fountain in the evening with easy snap-on WaterGlow lighting, sold separately.
Shop WaterGlow Lights →How shallow can the water be?
The 5 HP J Series fountain can operate in water as shallow as 26 inches deep.
Do I need an electrician to install this?
Kasco recommends a licensed electrician install the C-95 control panel and hard-wire the fountain to it.
Single phase or three phase — which do I need?
It depends on the electrical service available at your site. Call us and we'll help you determine which is right for your property.
Can I add lighting?
Yes — optional lighting packages are available, and the C-95 control panel includes a photo eye for automatic light operation.
What's covered under warranty?
The 5 HP unit is backed by an extended 5-year warranty.
