A 1/4 HP bottom-diffused aeration system that brings oxygen to ponds up to 1 acre and 50 feet deep — cleaner, clearer water in as little as 90 days.

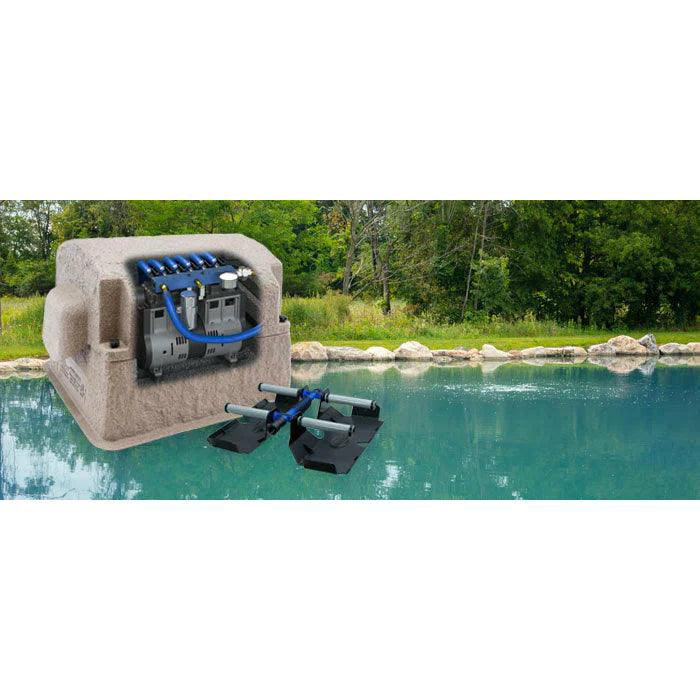

The Airmax PS10 works from the bottom up, adding oxygen right where muck and organic debris settle. A shore-mounted compressor pushes air through a weighted diffuser on the pond floor, creating a steady column of rising bubbles that circulates the entire water column and prevents thermal stratification. With more dissolved oxygen and active natural bacteria, excess nutrients get metabolized instead of building up — leaving you with cleaner, clearer water and noticeably less muck, often within 90 days.
Coverage scales with pond depth — see the sizing table below to find your range.
Whisper-quiet 1/4 HP rocking piston compressor with SmartStart Technology for safe pressurized restarts.
Faux-rock composite cabinet blends into the landscape while protecting internal components — 10-year warranty.
Install at the water's edge or up to 1/4 mile away — no electrician required with Airmax EasySet airline.
Runs 24/7 for as little as $13.20 per month in electricity.
Most ponds show visibly cleaner, clearer water within the first three months of continuous operation.
The deeper your pond, the more surface area the PS10 can effectively aerate:
| Pond Depth | Aeration Coverage |
|---|---|
| 6' – 9' deep | Up to 1/4 acre |
| 9' – 12' deep | Up to 1/2 acre |
| Over 12' deep | Up to 1 acre |
| Max Pond Size | Up to 1 Acre |
| Max Diffuser Depth | 50 ft |
| Compressor | 1/4 HP SilentAir Rocking Piston |
| Running Amps | 1.6A (115V) or 0.8A (230V) |
| Voltage | 115V or 230V |
| Wattage | 184 Watts |
| Max CFM | 2.3 |
| Diffusers | 1 ProAir4 Weighted Diffuser |
| Cabinet | Airmax Composite Cabinet, 23"L x 17"W x 15"H |
| Power Cord | 6 ft Cabinet Cord / 2'6" Compressor Cord |
| Monthly Operating Cost (24/7) | $13.20* |
| ProAir Diffuser Warranty | 5 Years |
| Compressor & Electrical Warranty | 3 Years |
| Composite Cabinet Warranty | 10 Years |
| EasySet Airline Warranty | 5 Years |
*Estimated cost based on average electricity rates; actual cost varies by location.

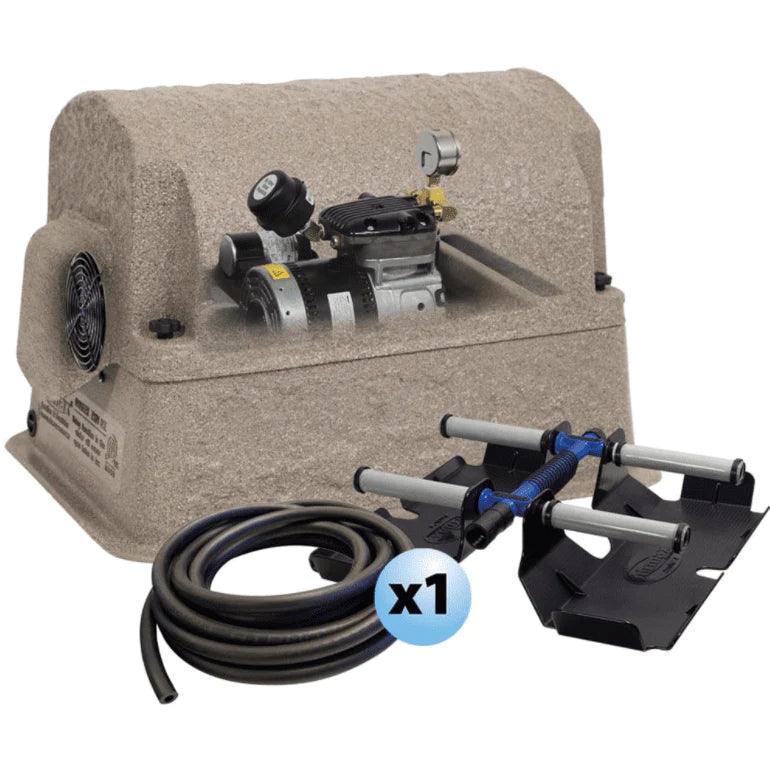

The heart of the system is a whisper-quiet 1/4 HP rocking piston compressor with rubber mounts for reduced noise and vibration. SmartStart Technology protects the compressor during pressurized restarts after a power interruption. Backed by a 3-year warranty.
An ETL-certified composite cabinet with a faux-rock finish blends into any landscape while protecting the compressor and electrical components. An elevated base guards against flood water, and a ventilation fan with rain shroud keeps things cool and dry. Backed by a 10-year warranty.
High-efficiency membrane diffusers release fine oxygen bubbles into the water column without the maintenance headaches of traditional air stones. An integrated check valve prevents backpressure on the compressor, and the weighted sled keeps the diffuser upright and submerged during installation. Backed by a 5-year warranty.
If your PS10's compressor has failed, the genuine Airmax RP25 (87R) 1/4 HP replacement motor is a direct fit.
Shop PS10 Replacement Motor →How do I know which coverage I'll get from the PS10?
Coverage depends on your pond's depth: 6'-9' deep aerates up to 1/4 acre, 9'-12' deep up to 1/2 acre, and over 12' deep up to a full acre.
Can the cabinet be installed far from the pond?
Yes — the compressor cabinet can sit at the water's edge or up to 1/4 mile away, connected by airline, so you're not limited to running power right to the shoreline.
Do I need an electrician to install this?
No special wiring is required at the pond itself — Airmax EasySet airline delivers oxygen to the water while the compressor plugs into a standard outlet at the cabinet location.
How long until I see results?
Most pond owners notice visibly cleaner, clearer water within about 90 days of continuous operation.
What's the difference between the 115V and 230V options?
Both deliver the same aeration performance — the choice depends on what power is available at your installation site. The 230V model draws lower amperage (0.8A vs 1.6A).
What's covered under warranty?
The ProAir diffuser and EasySet airline are covered for 5 years, the compressor and electrical components for 3 years, and the composite cabinet for 10 years.
My compressor stopped working — can I buy just that part?
Yes — the RP25 (87R) 1/4 HP replacement compressor is sold separately and is a direct fit for the PS10.
