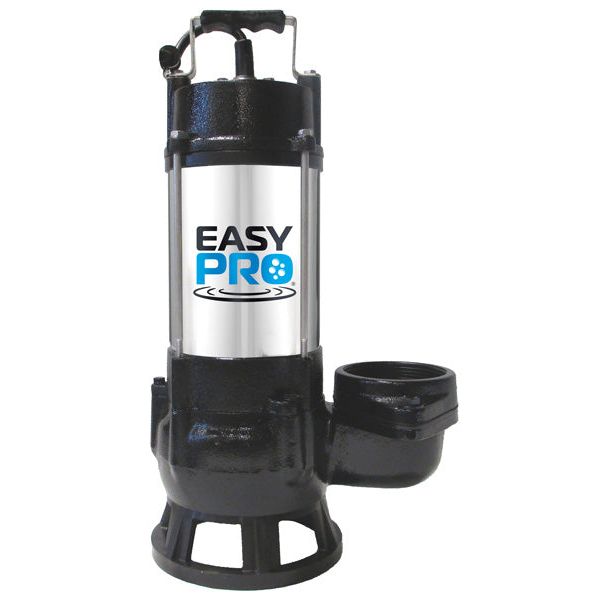

The TB Series is EasyPro's high-head submersible line, purpose-built for water features above 20' of vertical lift — tall waterfalls, multi-tier streams, and long or restrictive plumbing runs that would choke a standard pond pump. Four sizes cover 8,000 to 14,500 gph.
Stainless steel construction with top-quality Japanese double mechanical seals rated for over 100,000 hours of life, plus thermal overload protection. A minimum of 20' head pressure is required for the TB12000 and TB14500 — use a ball valve to create back pressure if your system runs less than that.
| Model | Max flow rate | Horsepower | Voltage | Amps | Max head | Outlet | Weight |
|---|---|---|---|---|---|---|---|
| TB8000 | 8,000 gph | 1 hp | 115V | 11A | 40' | 3" | 43 lbs |
| TB8002 | 8,000 gph | 1 hp | 230V | 11A | 40' | 3" | 43 lbs |
| TB12000 | 12,000 gph | 2 hp | 230V | 9.7A | 60' | 3" | 68 lbs |
| TB14500 | 14,500 gph | 3 hp | 230V | 14.5A | 72' | 3" | 74 lbs |
All sizes run on a 20' cord and carry a two-year warranty.
